Software License Details Page

The page displays the complete details of the software license. You can access this page from the Software License list page (by clicking on the Software License subject).

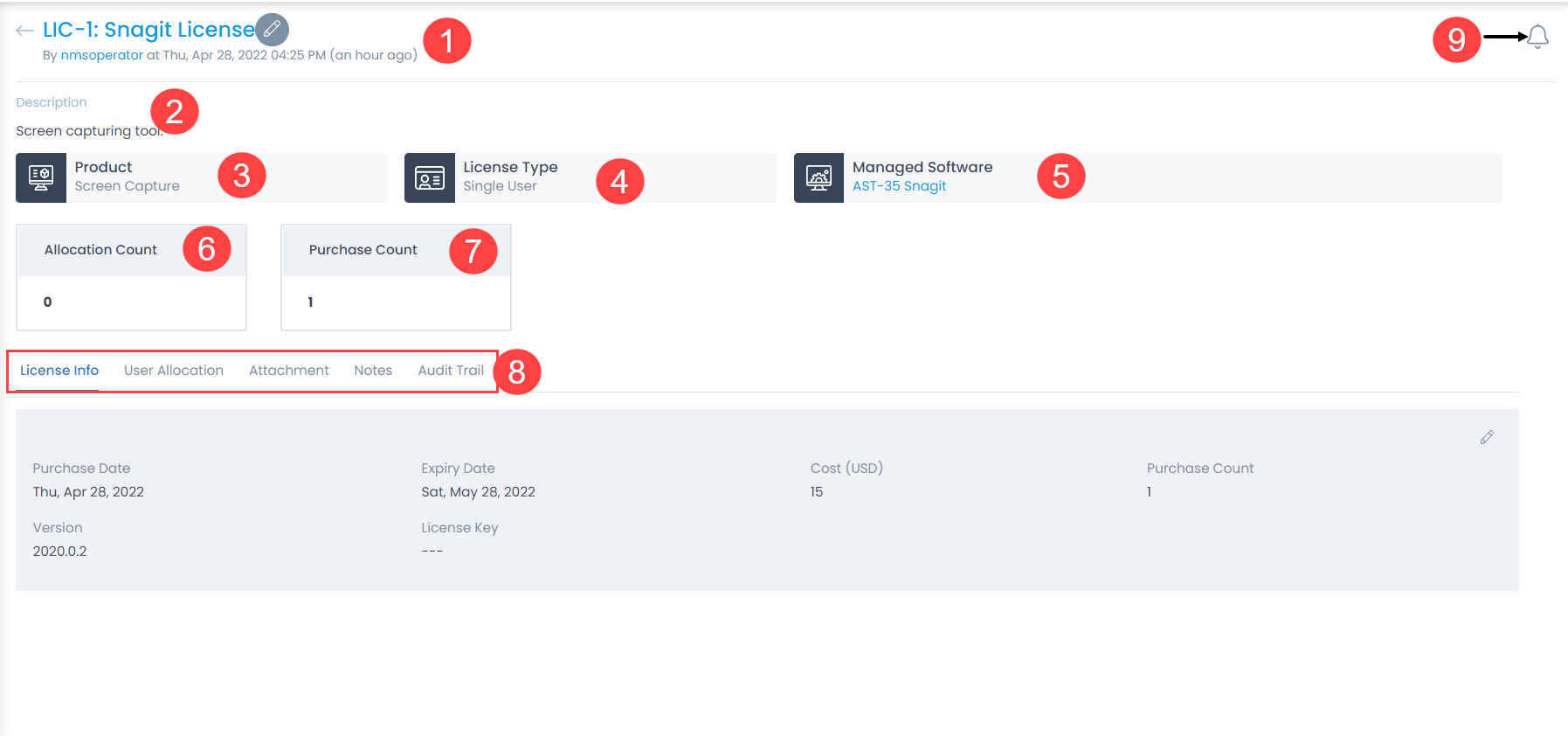

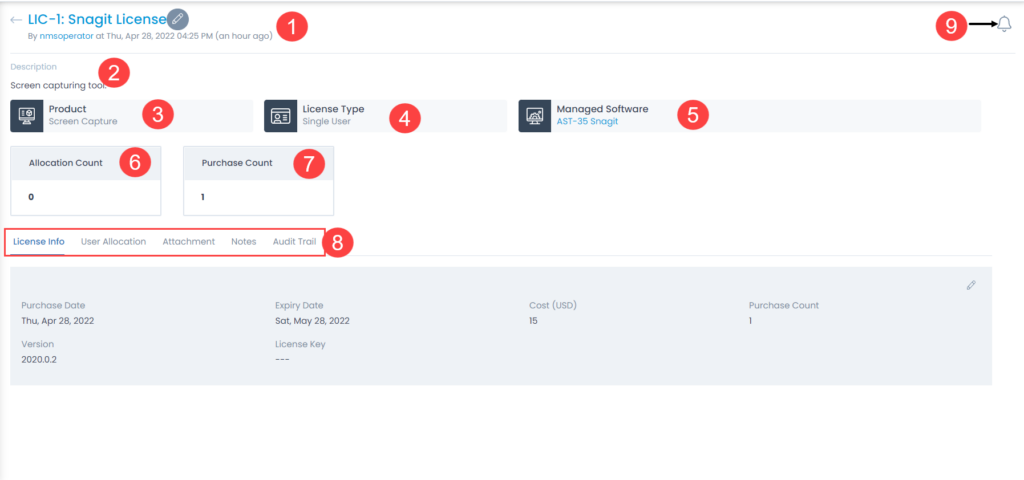

Software License Details Page
Software License Details Page

The page displays the following features:

  1. Subject: Displays the subject of the license. You can edit it using the Edit icon.
  2. Description: Displays the description of the license.
  3. Product: Displays the product associated with the license.
  4. License Type: Displays the license type.
  5. Managed Software: Displays the managed software. You can view the details of the managed software by clicking on its asset ID.
  6. Allocation Count: Displays the number of license allocated.
  7. Purchase Count: Displays the number of licenses purchased.
  8. Associated Actions: Displays the different actions (tabs) to be performed on the software license.
  9. Compliance Settings: Click the bell icon to configure the compliance settings and a popup appears.

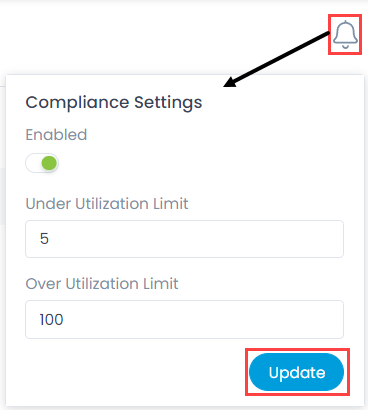

Compliance Settings
Compliance Settings

The popup allows you to set under and over utilization notifications for Multiple Machines and Volume Users License Types. You have to define the under-utilization and over-utilization threshold for the above mentioned License Types to enable utilization monitoring.

  1. Under Utilization Limit: Shows of an event when utilization(Installation/Purchase Count) falls below a specified percentage.
  2. Over Utilization Limit: Shows of an event when utilization(Installation/Purchase Count) exceeds a specified percentage.
  3. Once done, click Update.

Associated Actions for Software License

You can create/update different actions and activities as a part of communication, collaboration, and resolution in the Software License. These actions are available based on the license type selected.

License Info

This displays the license information. You can also edit the information by clicking the Edit icon.

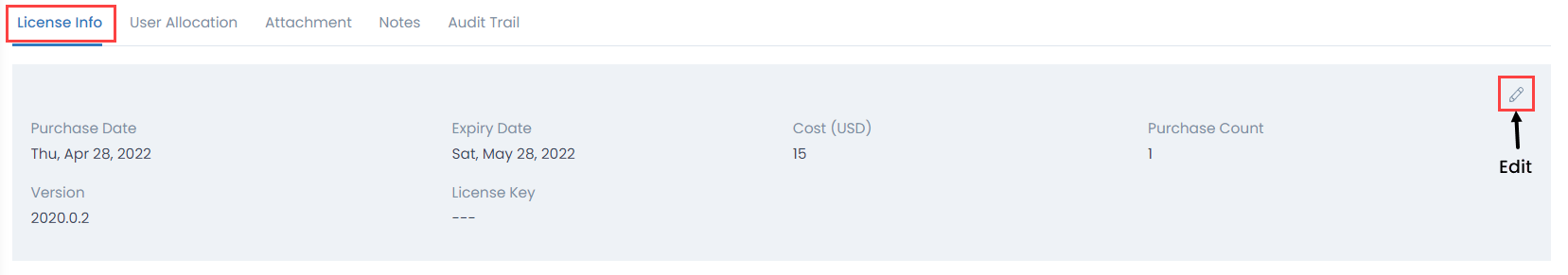

License Info Tab
License Info Tab

User Allocation

This displays the details of the user to which the license is allocated. From here, you can allocate and deallocate license to the users.

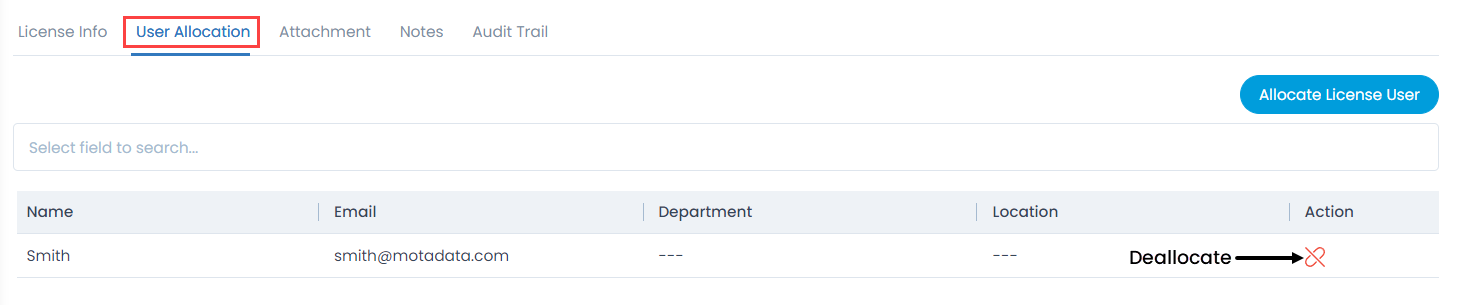

User Allocation Tab
User Allocation Tab

To allocate the license,

  1. Click the Allocate License User button and a popup appears.
  2. Select the users from the list. You can also search the required user. You can select the number of users as per the license purchased.
  3. Click Add and the license gets allocated to the users. Also, the users appear in the User Allocation table as shown in the below-right figure.

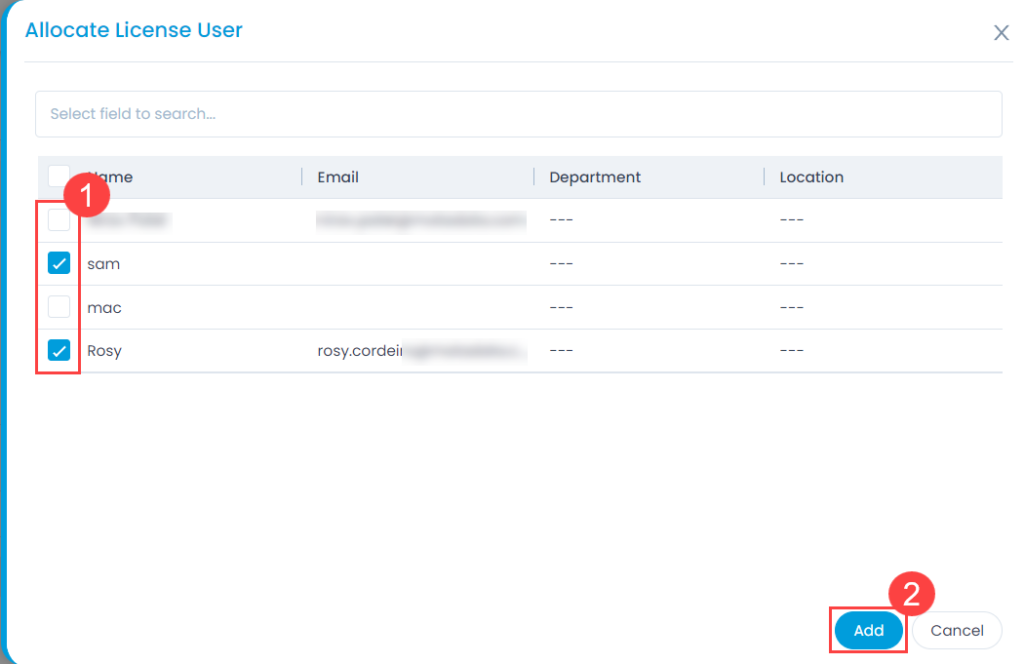

Select Users for Allocating License
Select Users for Allocating License

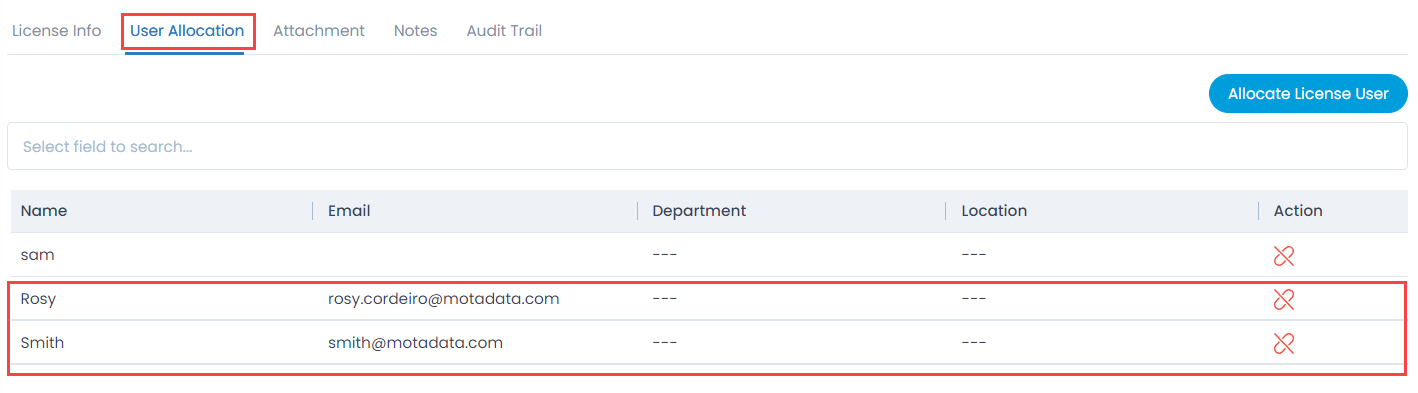

License Allocated to Users
License Allocated to Users

Attachment

This tab allows you to attach the license, invoice, and purchase order files to the software license.

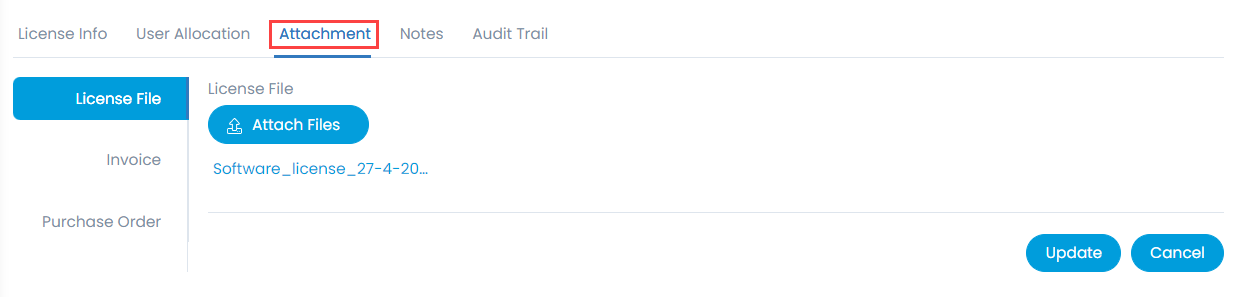

Attachment Tab
Attachment Tab

Notes

This tab allows you to view and add notes for future reference. You can also edit and delete them if required.

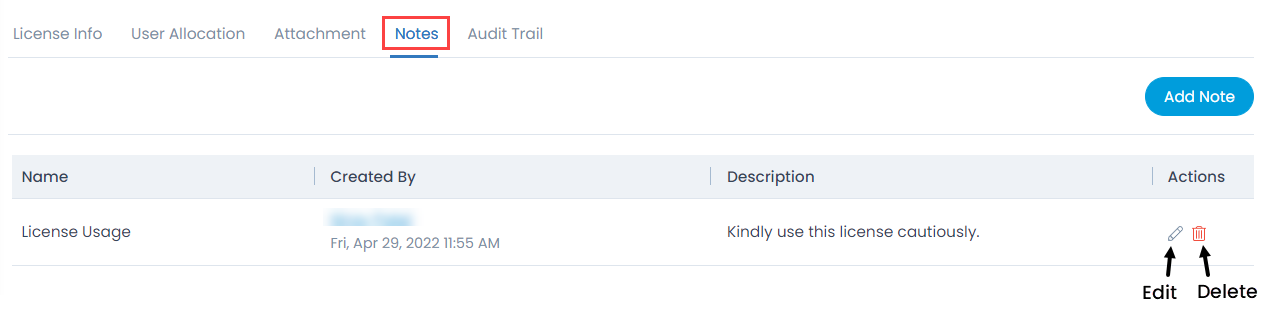

Notes Tab
Notes Tab

Audit Trail

This tab displays the activity logs for the particular created license.

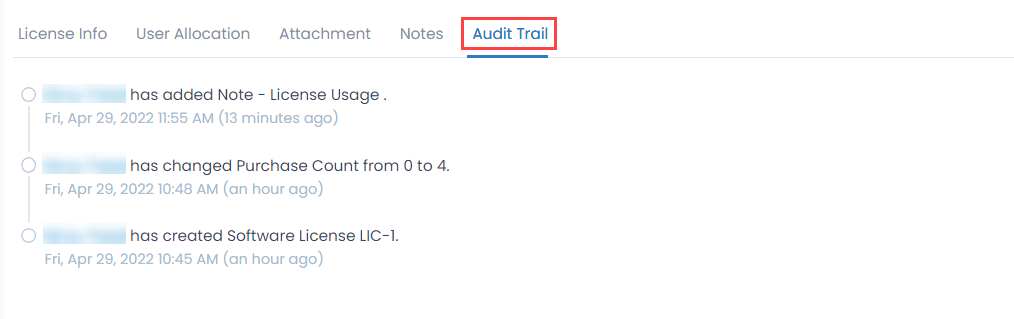

Audit Trail Tab
Audit Trail Tab

Allocation

This tab displays the details of the hardware assets to which the license is allocated.

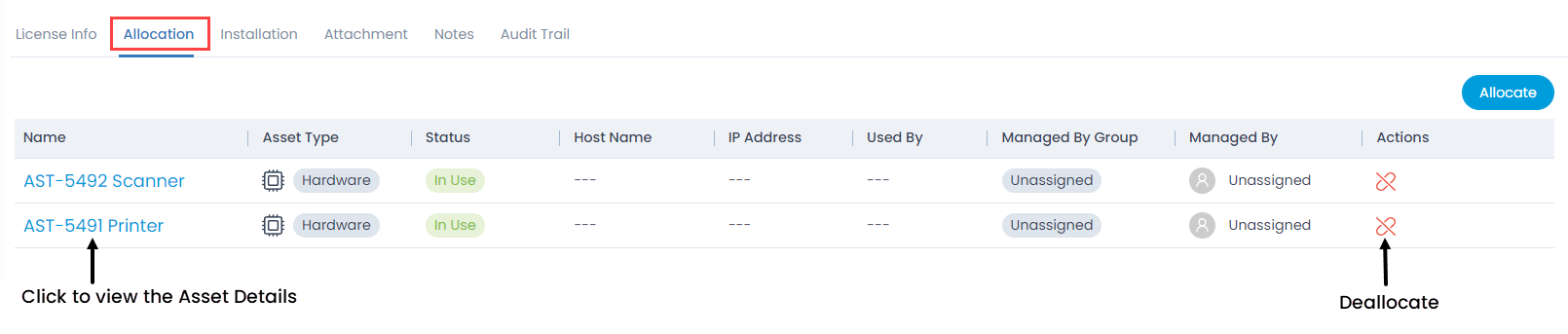

Allocation Tab
Allocation Tab

To allocate the license,

  1. Click the Allocate button and a popup appears.
  2. Select the Hardware Assets from the list. You can also search the required asset.
  3. Click Add and the license gets allocated to the assets.

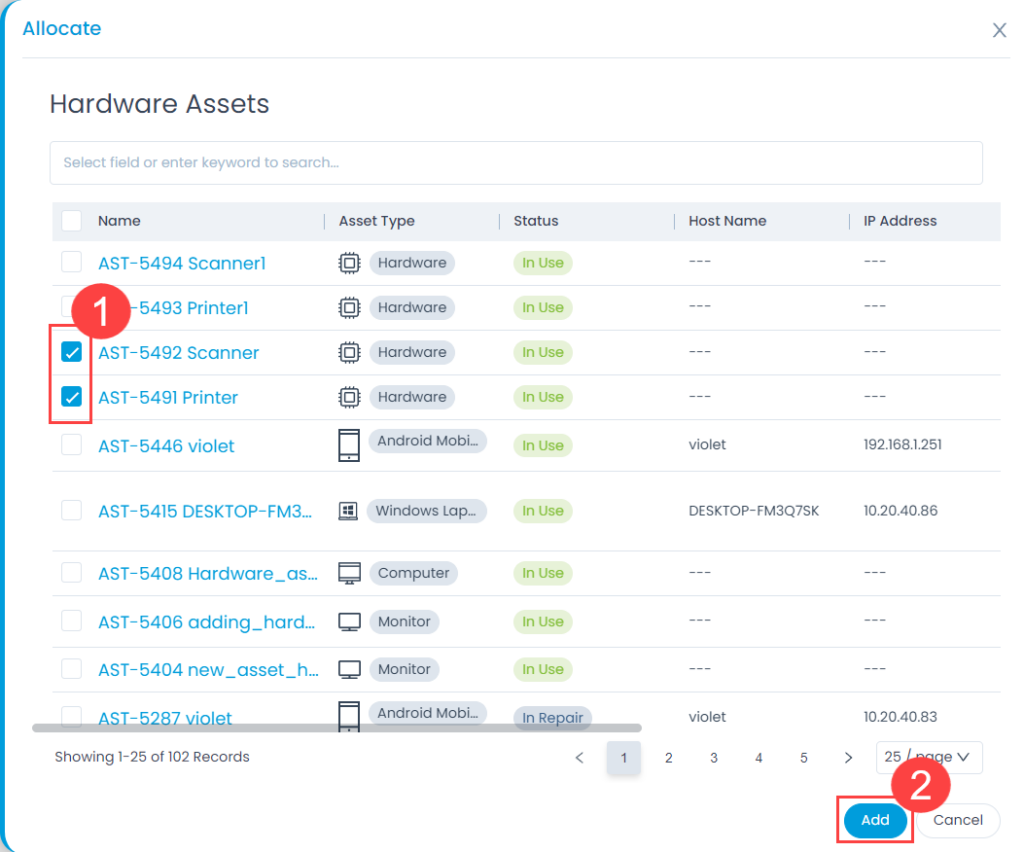

Select Hardware Assets
Select Hardware Assets

Installation

This tab displays the details of the license installed in the assets.

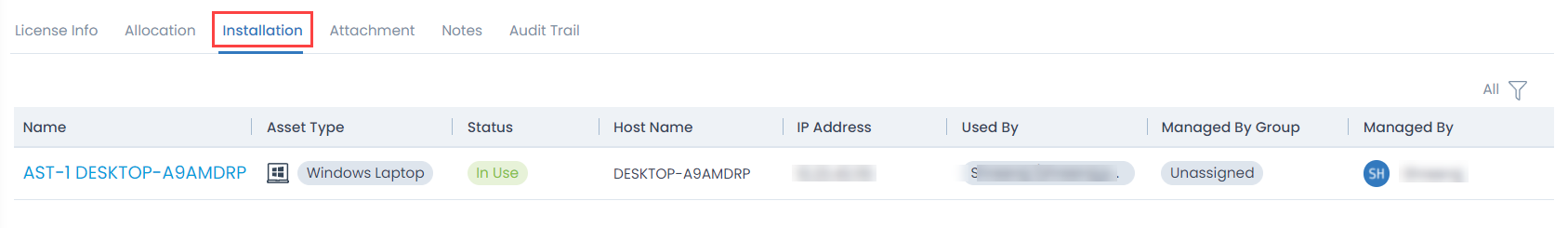

Installation Tab
Installation Tab
