Example Scenario

To understood an SLA, a small case scenario can be considered. The objective of this scenario is only to explain the flow of SLA and not all the features associated with it. Here, you can see:

  • How SLA computes the due date.
  • Calculation of due date.
  • Escalations on SLA violation.

The SLA is created with the following settings:

  • Name: Low Impact SLA for Demo.
  • Operational Hours Type: Business – should be applicable until a technician group is assigned. And, also when the technician group is assigned but the latter is not associated with the business hours.
  • Condition: SLA is effective when the request Impact is Low.
  • Response Escalation: Change Priority to Medium.
  • Max Response Time: 10 minutes
  • Max Resolution Time: 15 minutes
  • Resolution Escalation: Send Escalation Email and set Priority to High.
  • Operational Level Agreement: 6 minutes
  • Technician Group: IT

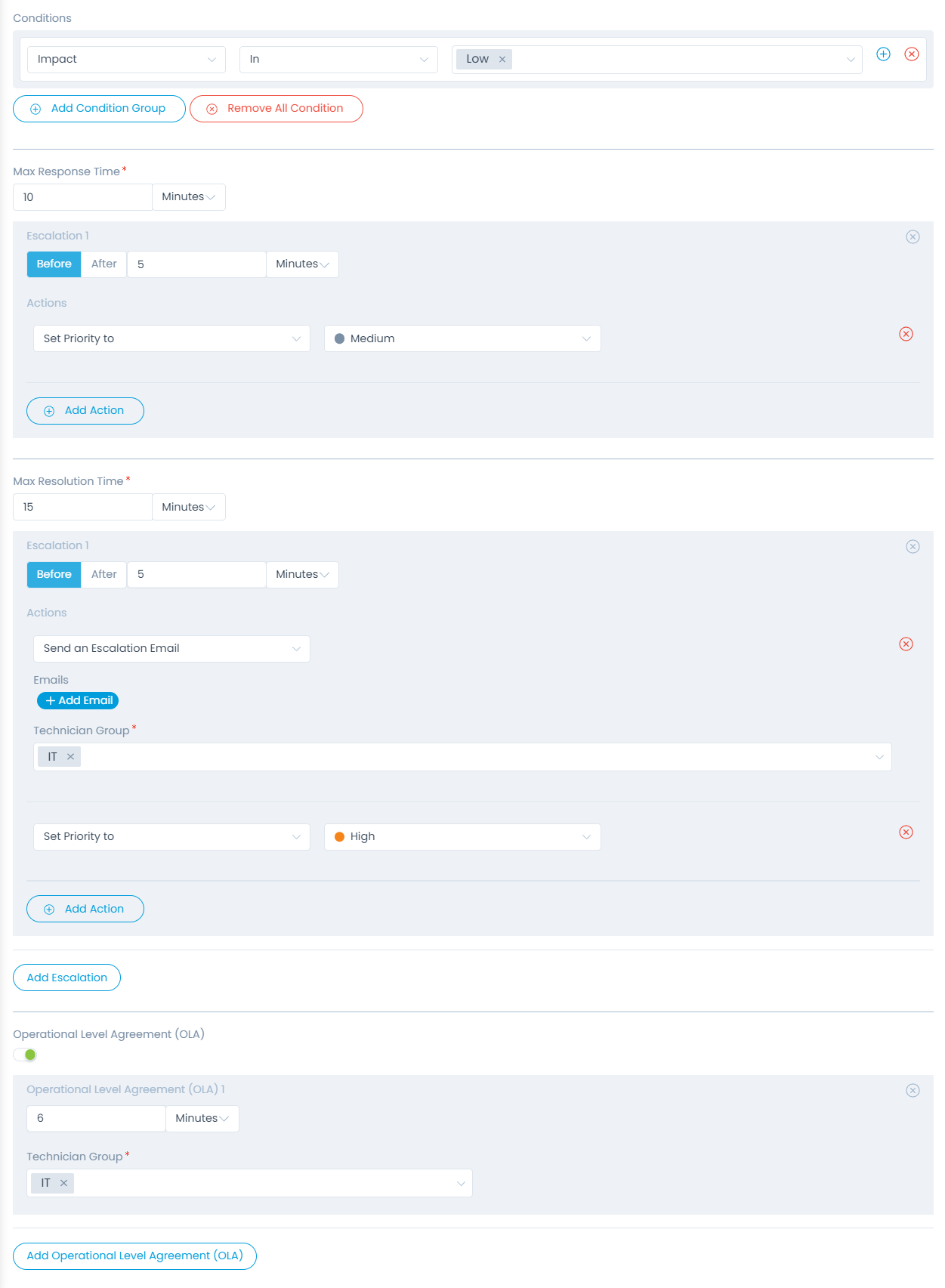

Example for Sample SLA
Example for Sample SLA

Now, create a request of Low priority. The SLA will get applied to it as shown below.

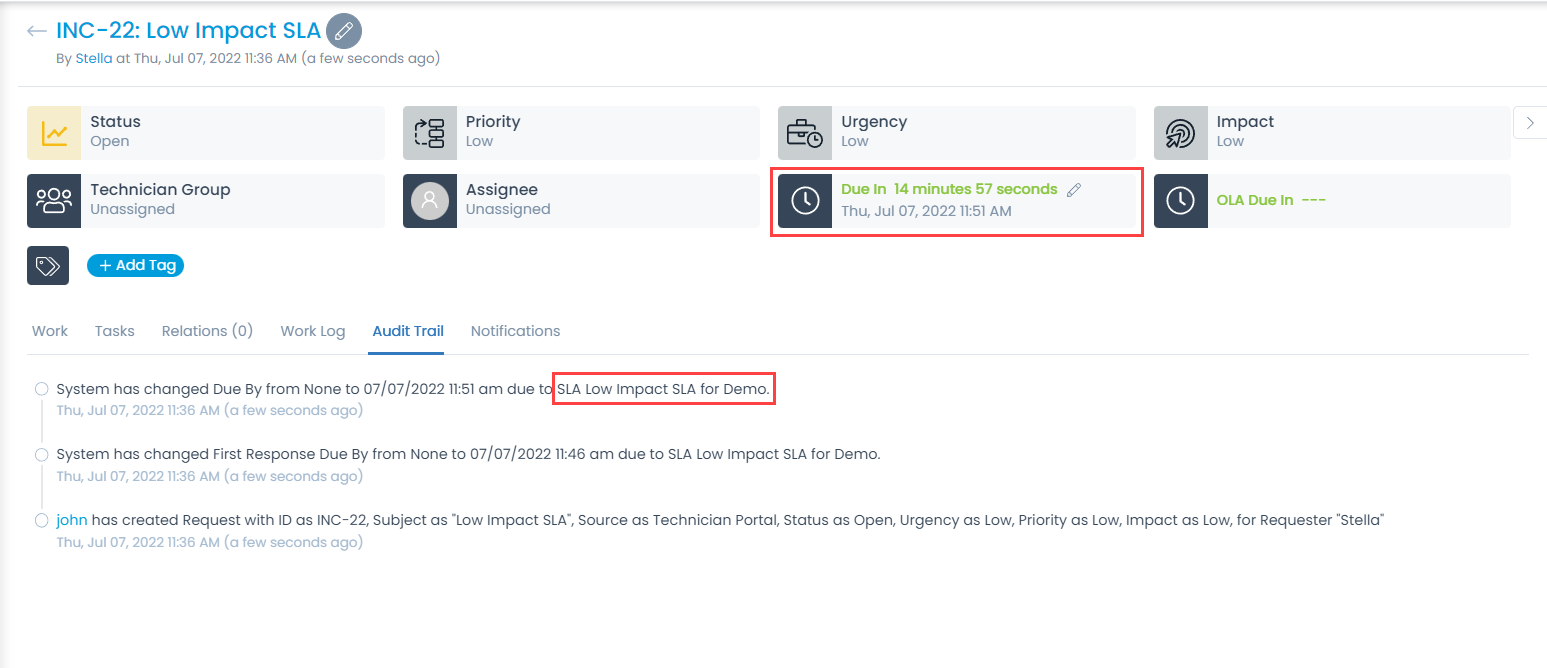

SLA applied to Request
SLA applied to Request

Since, there is no technician group assigned to the request, it has taken the ‘Default’ business hours for due date computation. Default business hours is Mon-Fri 10:00 AM to 06:00 PM. The creation time is 7th Jul 2022 11:36 AM. Also, the resolution time is 10 minutes i.e. 7th Jul 2022 11:51 AM.

The SLA after the due is escalated and the urgency is now set to medium. It also shows the over due period.

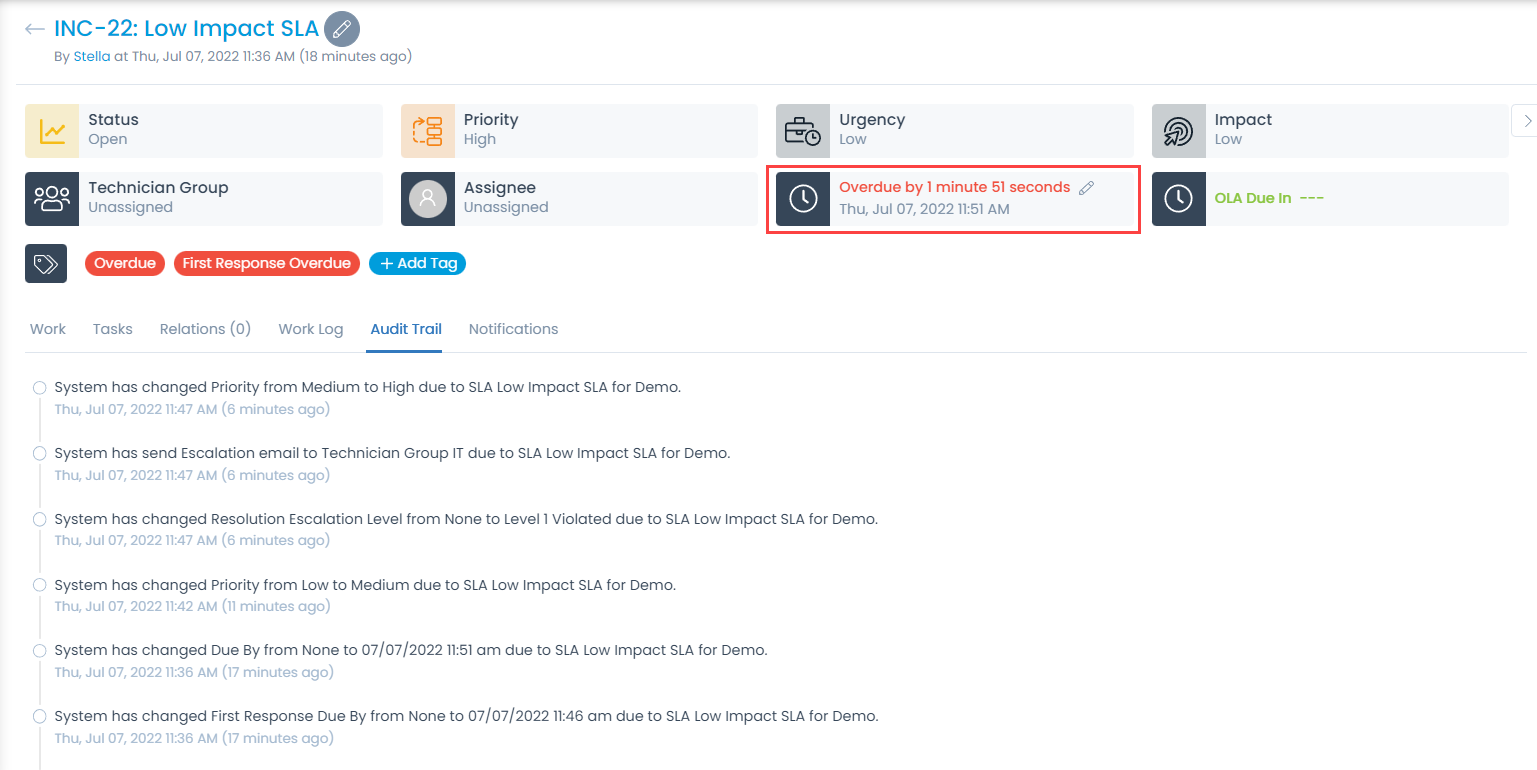

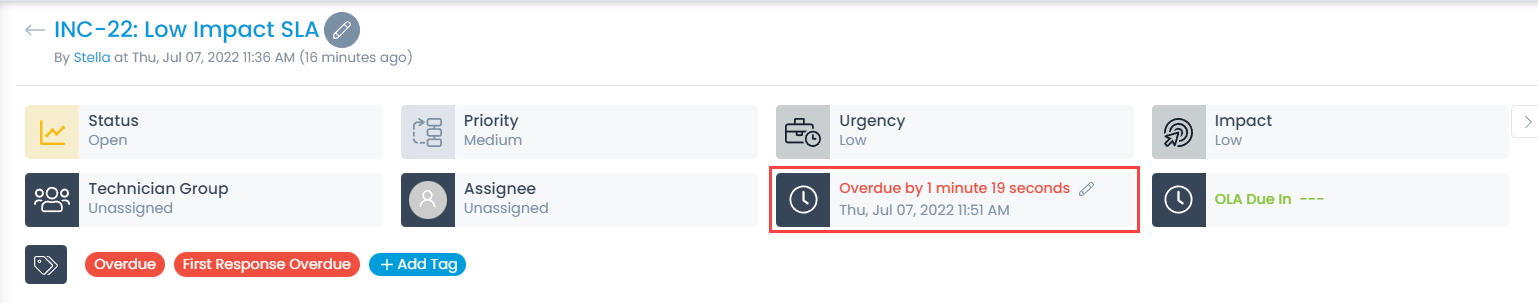

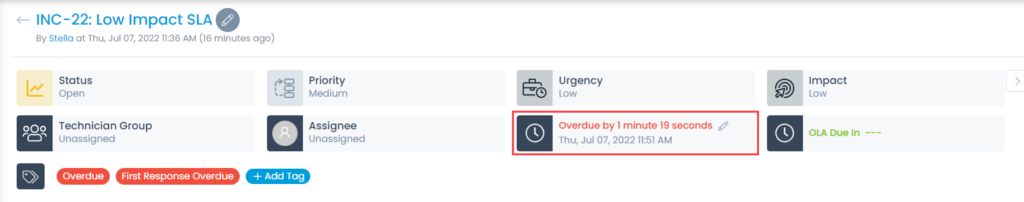

SLA Overdue
SLA Overdue

Now, assign a Technician Group to the request. The Technician Group has 24×7 working hours associated to it. Based on this calculation, the 15 minutes resolution time ends 15 minutes after the request create date. Hence, the overdue period is changed accordingly. Since, the create date was Jul 07, 2020 11:36 AM, the due date for technician group was 15 minutes later i.e. Jul 07, 2022 11:51 AM.

SLA with Technician Group Business Hours
SLA with Technician Group Business Hours

Now, when the Operational Level Agreement is set to 6 minutes, and a Technician Group is assigned, the rule gets applied as shown below.

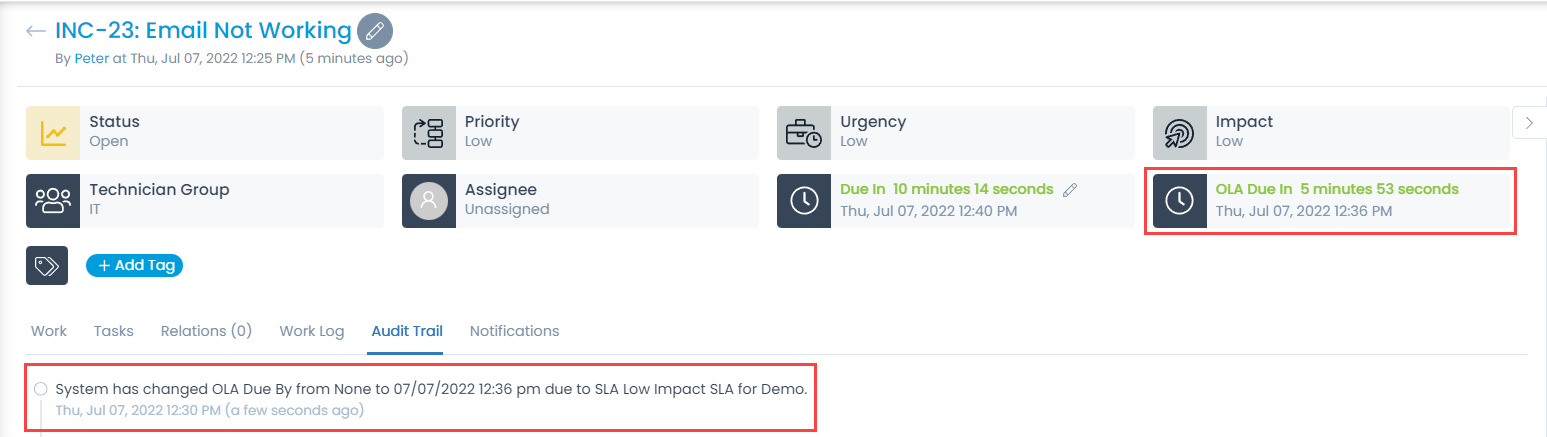

OLA Applied
OLA Applied

Since, the OLA was applied on Jul 07, 2022 12:30 PM, its due date will be after 6 minutes, i.e., Jul 07, 20222 12:36 PM

If the OLA rule gets violated, the field displays the OLA Overdue by time in red color as shown below.

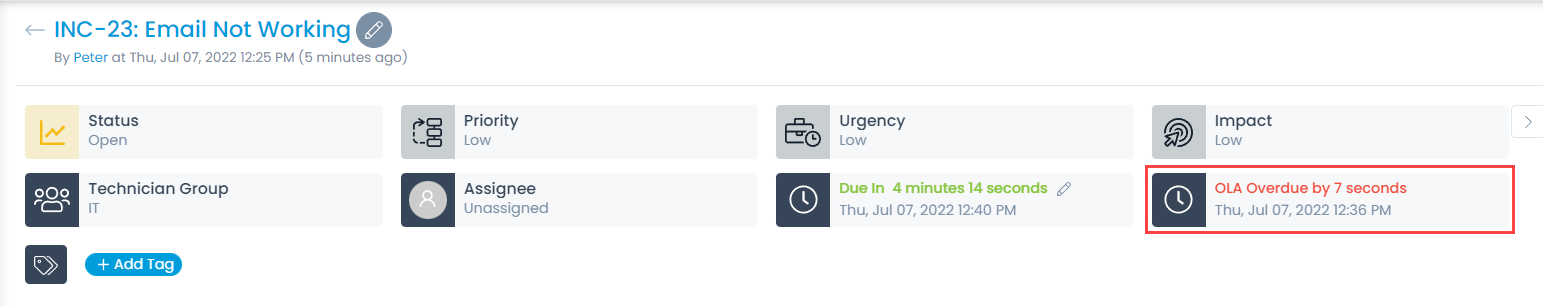

OLA Overdue
OLA Overdue
