Patch Management

Devices are often susceptible to the targets of exploits and malware accesses. Patching a software repairs the vulnerability that is identified in an application or a software. Regularly updated patches help to enhance the applications with new features and exposed security fixes.

What is Patch Management?

A patch is a piece of software code applied after the software program is installed to rectify an issue within it. Generally, the software applications roll out several patches after their initial release and keep on releasing the versions to fix any vulnerabilities or bugs in an application. Patch management is the process of managing a network of computers by regularly distributing and applying the updates to software. These patches are often necessary to correct errors.

Benefits

For organizations owning multiple servers and computers, updating patches manually can be both time-consuming and challenging. It can also increase business risks if any critical vulnerability is left unforeseen. The following are the few reasons why Patch Management should be considered:

  1. Security: It fixes vulnerabilities on software and applications that are susceptible to cyber-attacks, helping the organization reduce its security risk.
  2. System Reliability: It ensures that software and applications are updated and run smoothly.
  3. Feature and Functional Improvements: It can go beyond application fixes by providing updates in its feature or functionality.
  4. Compliance: With the continuous rise in cyber-attacks, organizations require to maintain a certain level of compliance. Patch management is a necessary piece of adhering to compliance standards.

Patch Management Process Lifecycle

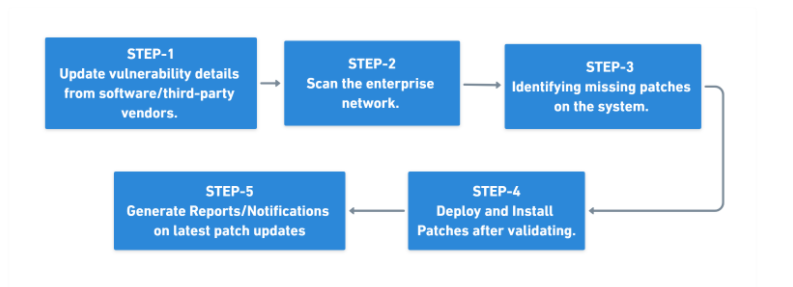

Patch Lifecycle
Patch Lifecycle
  • The patch information is collected from the application website and put into a Central Patch Repository (CPR). The network of the organization is then scanned to identify the computers that require these patches. For large geographically distributed networks Distribution/Relay Servers are configured.
  • These patches contain critical and security/non-security updates, service packs, rollups, feature packs, etc. These installed and missing patches are analyzed, downloaded, and asked for an approval before updating it on the system. Generally, patches are approved only if they do not cause any problems post deployment.
  • Policies can be created to enable multiple deployment and scheduling settings. Various Reports can also be generated after the successful deployment and the related information is sent to the server.

Working

The working of Patch Management depends on whether a patch is being applied to a stand-alone system or to a multiple computer network. While the system is in stand-alone mode, the OS and the applications, will periodically perform an automatic check to see if any patches are available. If found any, the patches will be downloaded and installed automatically.

In contrast to the above, in organizations with huge IT Infrastructure, checking for patches and deploying them on individual computer is a complicated and time-consuming process. In order to overcome this, the larger organizations undergo a centralized patch management rather than manually allowing each computer to download its own patches. Also, conducting centralized patching helps to conserve the Internet bandwidth. Instead of downloading individual patches across all the computers, the server can download, and distribute the patch to all the computers available on the network. This saves the bandwidth consumption.

Motadata ServiceOps streamlines the process through a centralized patch management repository. This retrieves patches available through third-party application websites and distributes them to the computers on the organization’s network.

Architecture

The ServiceOps Architecture includes below:

  1. Main Server hosted on Cloud and File Server on Premise
  2. Main Server and File Server hosted on Premise
  3. Main Server and File Server hosted on Cloud
  4. Remote Office

a. Main Server hosted on Cloud and File Server on Premise

The architecture mainly consists of the following components:

  1. Central Patch Repository
  2. ServiceOps Main Server (Cloud)
  3. File Server (On Premise)

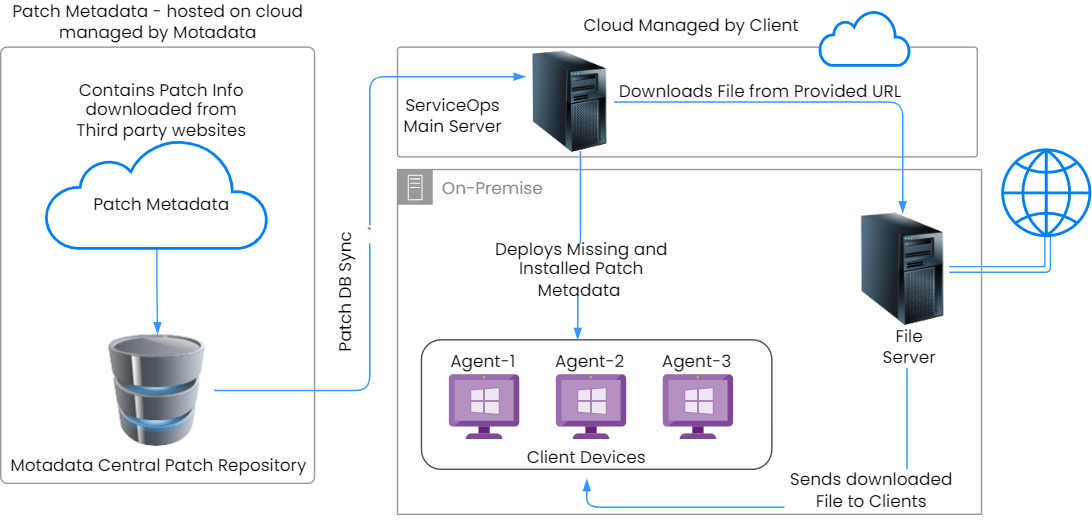

Main Server on Cloud and File Server on Premise
Main Server on Cloud and File Server on Premise

As shown above, the Motadata Central Patch Repository checks the Internet repeatedly to draw latest patch information from the third-party application websites and stores it. The local patch database regularly updates itself by pulling the updated patch details from the central repository.

The ServiceOps Main server, located in the cloud, synchronizes with the central repository. It periodically downloads the updates and vulnerabilities available in the database.

The scan will automatically determine which updates are needed on each client system, taking into account the operating system, build version, application, and update dependencies. Resulting to this, the missing patch details along with the respective severity for individual computer will be identified and installed into the database.

The entire process of information gathering, patch analysis, and publishing the latest vulnerability database occurs periodically. The updated patches are available for access once the Central Patch Repository and the ServiceOps server both are synchronized. ServiceOps also supports manual sync for patch updates. Comprehensive views of Patch-wise Systems and System-wise patches with installation status can be viewed on the ServiceOps portal.

After the missing and installed patches are listed, an approval is needed for updating the missing patches into the system. Approved patches are then downloaded from the third-party website on File Server and stored. These patches are then pushed on to the targeted systems for installation as per the deployment policy. Installed patches and service packs are verified and deployed on the systems. These can effectively generate reports for the purpose of monitoring and security compliance.

b. Main Server and File Server hosted on Premise

The architecture mainly consists of the following components:

  1. Central Patch Repository
  2. ServiceOps Main Server (On Premise)
  3. File Server (On Premise)

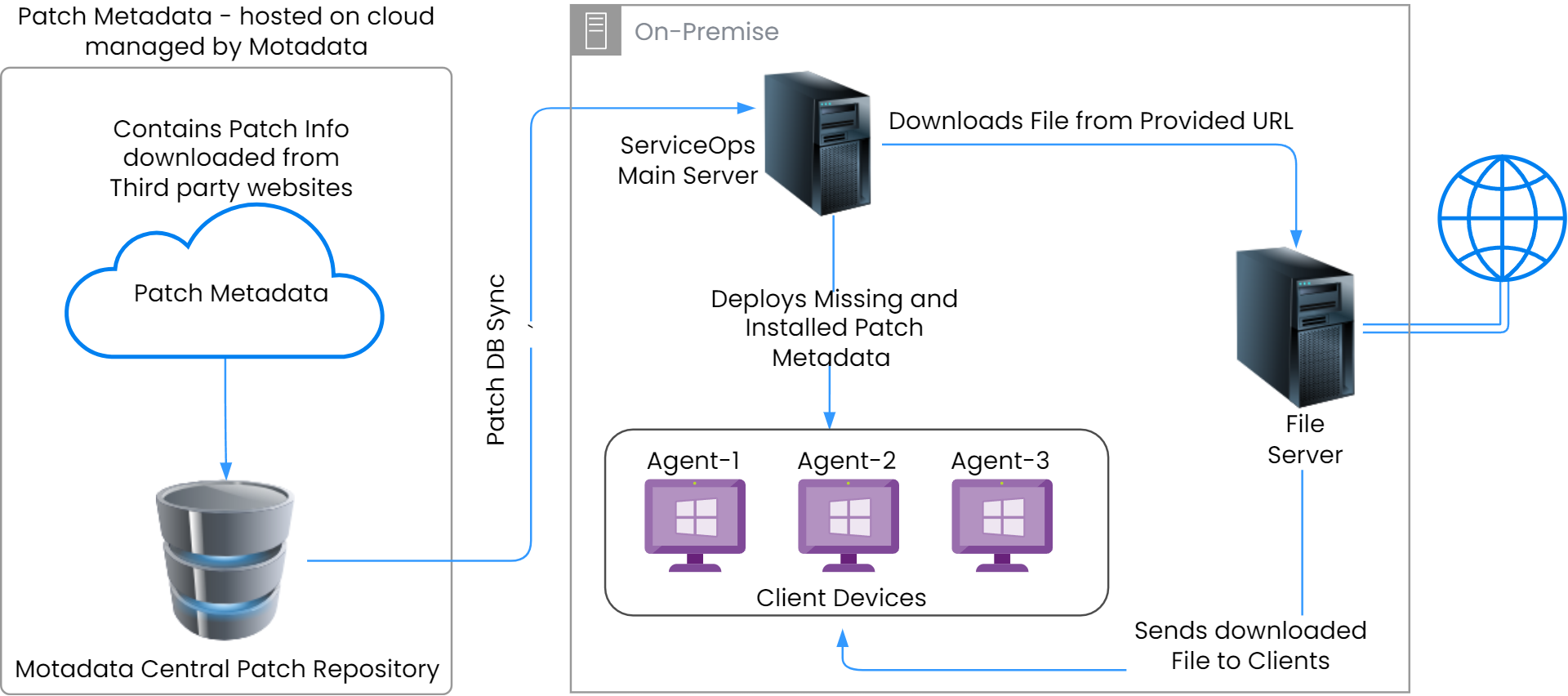

Main Server and File Server on Premise
Main Server and File Server on Premise

As shown above, the Motadata Central Patch Repository checks the Internet repeatedly to draw latest patch information from the third-party application websites and stores it. The local patch database regularly updates itself by pulling the updated patch details from the central repository.

The ServiceOps Main server synchronizes with the central repository. It periodically downloads the updates and vulnerabilities available in the database.

The scan will automatically determine which updates are needed on each client system, taking into account the operating system, build version, application, and update dependencies. Resulting to this, the missing patch details along with the respective severity for individual computer will be identified and installed into the database.

The entire process of information gathering, patch analysis, and publishing the latest vulnerability database occurs periodically. The updated patches are available for access once the Central Patch Repository and the ServiceOps server both are synchronized. ServiceOps also supports manual sync for patch updates. Comprehensive views of Patch-wise Systems and System-wise patches with installation status can be viewed on the ServiceOps portal.

After the missing and installed patches are listed, an approval is needed for updating the missing patches into the system. Approved patches are then downloaded from the third-party website on File Server and stored. These patches are then pushed on to the targeted systems for installation as per the deployment policy. Installed patches and service packs are verified and deployed on the systems. These can effectively generate reports for the purpose of monitoring and security compliance.

c. Main Server and File Server hosted on Cloud

The architecture mainly consists of the following components:

  1. Central Patch Repository
  2. ServiceOps Main Server (Cloud)
  3. File Server (Cloud)

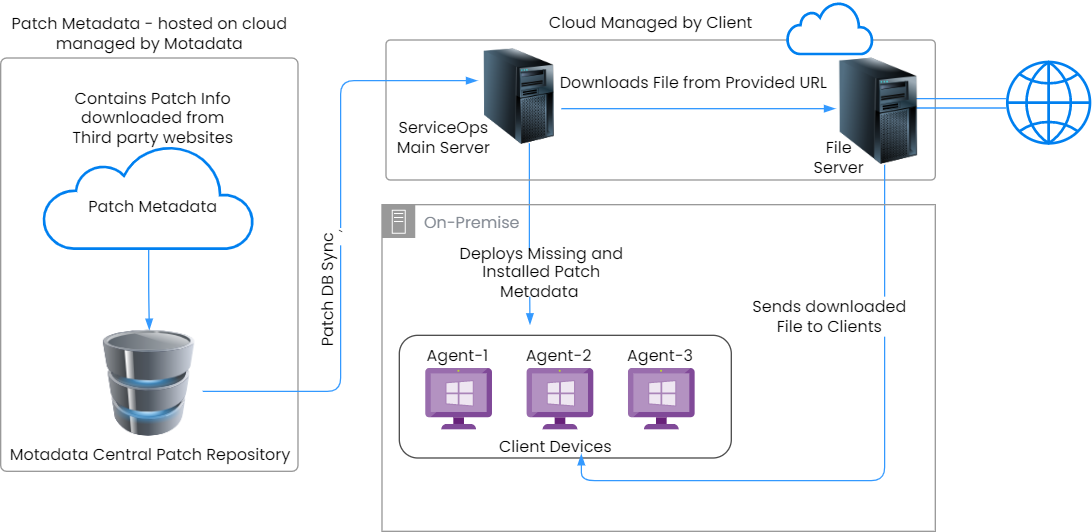

Main Server and File Server hosted on Cloud
Main Server and File Server hosted on Cloud

As shown above, the Motadata Central Patch Repository checks the Internet repeatedly to draw latest patch information from the third-party application websites and stores it. The local patch database regularly updates itself by pulling the updated patch information from the central repository.

The ServiceOps Main server, located in the cloud, synchronizes with the central repository. It periodically downloads the updates and vulnerabilities available in the database.

The scan will automatically determine which updates are needed on each client system, taking into account the operating system, build version, application, and update dependencies. Resulting to this, the missing patch details along with the respective severity for individual computer will be identified and installed into the database.

The entire process of information gathering, patch analysis, and publishing the latest vulnerability database occurs periodically. The updated patches are available for access once the Central Patch Repository and the ServiceOps Main server get synchronized. ServiceOps also supports manual sync for patch updates. Comprehensive views of Patch-wise Systems and System-wise patches with installation status can be viewed on the ServiceOps portal.

After the missing and installed patches are listed, an approval is needed for updating the missing patches into the system. Approved patches are then downloaded from the third-party website on the File Server and stored in the cloud. These patches are then pushed on to the targeted systems for installation as per the deployment policy. Installed patches and service packs are verified and deployed on the systems. These can effectively generate reports for the purpose of monitoring and security compliance.

d. Remote Office

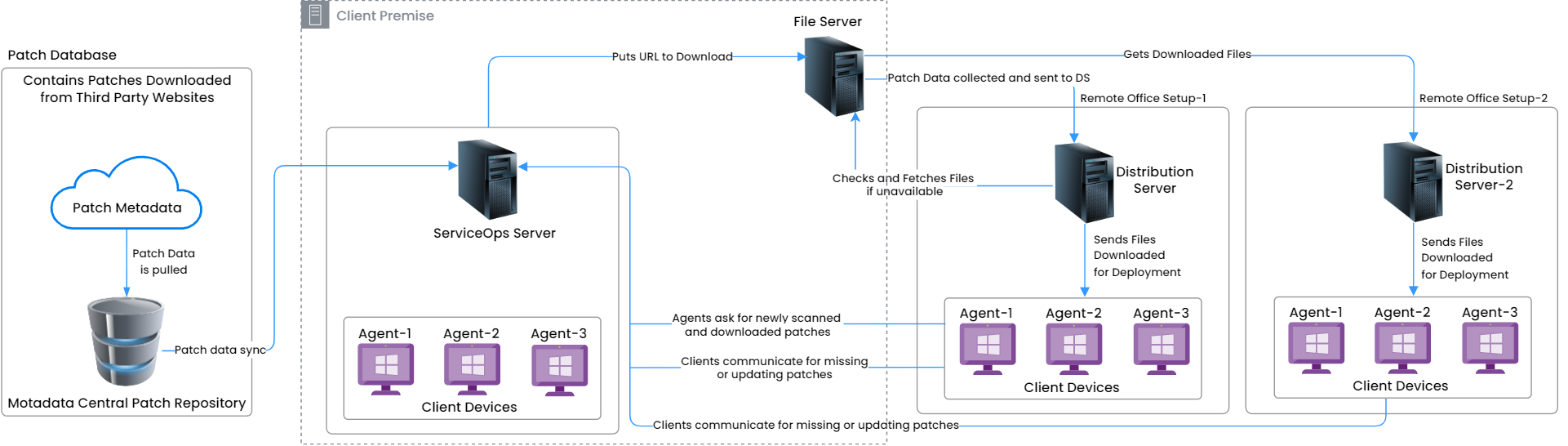

Remote Office
Remote Office

In the Remote Office setup, the Distribution Server is installed as a component. It synchronizes the missing patch details from the ServiceOps server and downloads the missing patches. The downloaded patches are further distributed to the clients for patch deployment. On completion of the successful deployment, the status is updated to the server.

Prerequisites

  1. Internet Connectivity
    ServiceOps requires Internet connectivity for the following purposes:

    • For updating the Patch Vulnerability from Central Patch Repository.
    • For downloading patches from the third-party application website.

    Proxy settings will be needed to be configured for production patch management, as direct Internet connectivity will not be available.

  2. Storage
    As a part of Patch Management, the File Server needs to be installed. It is used for maintaining the downloaded patch and pushing them to the managed clients. As a part of maintenance, space availability check and old data clean up needs to be performed.

Supported Devices

Supported Client Windows OS List:

  • Windows 7
  • Windows 8
  • Windows 10
  • Windows 11

Supported Server OS List for Windows OS:

  • Windows Server 2008
  • Windows Server 2012
  • Windows Server 2016
  • Windows Server 2019

Supported Client Linux OS List:

  • Ubuntu
  • CentOS
  • RedHat

Supported OS Version List for Linux OS:

  • Ubuntu 16.04 (For All Desktop and Server versions)
  • Ubuntu 18.04 (For All Desktop and Server versions)
  • Ubuntu 20.04, 20.10 (For All Desktop and Server versions)
  • Ubuntu 21.04 (For All Desktop and Server versions)
  • CentOS 7
  • CentOS 8
  • CentOS 8 Stream
  • RedHat Server v7
  • RedHat Server v8
  • Mint OS 18/19/20
  • Opensuse 15.3/15.4
  • Debian 8/9/10/11
  • Oracle Linux 7/8/9

Not Supported Windows Patch Categories:

  • Drivers Patches
  • Bios Patches
  • Third Party Application Patches

Supported Patch Categories:

  • Microsoft Updates
  • Security Updates
  • Updates
  • Optional Updates
  • Definition Updates (Antivirus Definition Updates)
  • Rollups
  • Preview Rollups
  • Service Packs
  • Feature Packs

The steps required to be carried out in the ServiceOps portal for Windows and Linux Patch Management would be the same. The user just needs to change the OS specific field and related application as shown in the Automatic Patch Test and Automatic Patch Deployment.
